Project cargo Dubai moves are the shipments where a standard freight quote stops being useful. A transformer, a pressure vessel, a crane boom, a prefabricated module — these do not fit a container, cannot be handled by a normal forklift, and will not clear a roundabout without someone having measured it first.
Get one of these right and it is unremarkable. Get one wrong and you are paying demurrage on a breakbulk vessel while a permit is reissued, or discovering at 2am that a bridge on the approach road is 40 cm too low. The cost of a mistake is not a percentage of the freight — it is usually a multiple of it.
This guide covers how project cargo Dubai shipments are actually planned: which equipment suits which cargo, why the route survey matters more than the rate, what permits an oversized road move needs in the UAE, and the seven steps that keep a heavy lift on schedule.
🏗️ Moving something oversized?
Send us dimensions, weight, origin and final site. We will come back with the equipment option, the route constraints we can see, and a realistic timeline — before anyone quotes a number.
What Counts as Project Cargo in Dubai
There is no single threshold, but cargo generally moves into project handling when it is any of the following:
- Out of gauge (OOG) — exceeds the internal dimensions of a standard container in width, height or length.
- Heavy lift — beyond the safe working load of standard terminal handling equipment, typically above 25–30 tonnes as a single piece.
- Indivisible — cannot be broken down into smaller consignments without damaging or invalidating it.
- High value or critical path — a single unit whose late arrival stops an entire construction or commissioning programme.

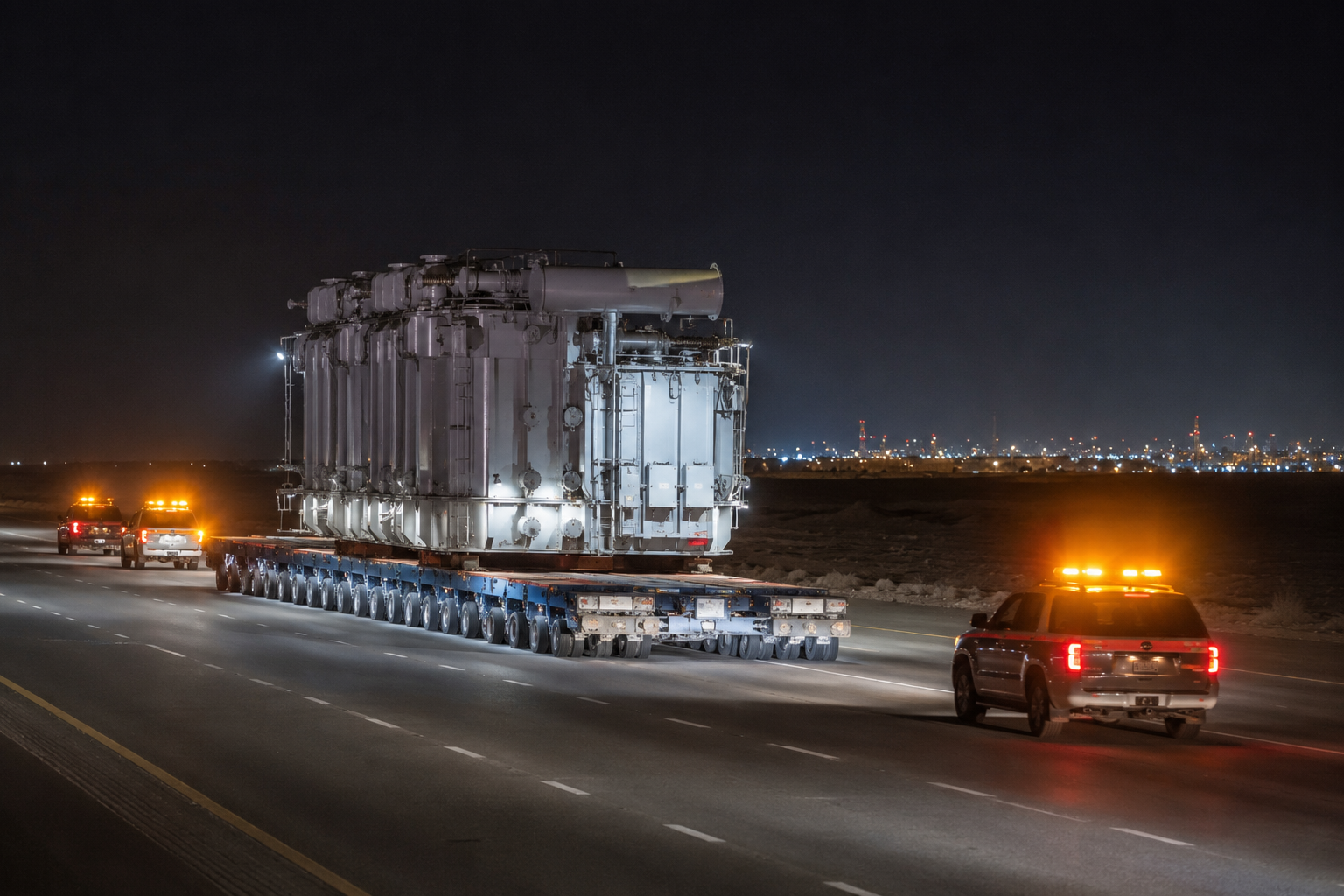

Typical examples through the UAE: generators and transformers, turbine components, storage tanks, refinery vessels, modular accommodation units, tower crane sections, drilling equipment and large industrial plant.
Equipment Options for Project Cargo
| Method | Best For | Watch For |
|---|---|---|
| Flat rack | Over-width or over-length pieces up to roughly 40t | OOG surcharges scale with how many slots you block |
| Open top | Over-height cargo craned in from above | Tarpaulin and weather protection must be specified |
| Breakbulk | Pieces too large for any container | Sailing frequency is lower — schedule early |
| RoRo | Wheeled or tracked units that can be driven aboard | Deck height and ramp capacity limits apply |
| Heavy lift vessel | Single pieces beyond shore crane capacity | Chartered capacity, booked well in advance |
The right answer is rarely the cheapest line in this table. A flat rack that saves money at sea can cost more on land if the resulting height forces a longer inland route.
The Route Survey: The Step People Skip
Before anything is booked, the inland leg has to be proven. A route survey physically checks the path from berth to final site against the loaded dimensions:
- Bridge and overpass clearances, including camber at the crown
- Roundabout and junction turning radii for a long trailer
- Overhead power and telecom lines
- Road load-bearing capacity and any weight-restricted structures
- Site access, laydown area and crane standing ground
Most project cargo Dubai failures trace back to a survey that was assumed rather than performed. A 30 cm miscalculation on loaded height is not a delay of hours — it can mean a full reroute, new permits and a second escort booking.
Permits and Escorts for Oversized Road Moves
Oversized and overweight movements on UAE roads require prior authorisation. In practical terms:
- Permits are issued per movement, tied to specific dimensions, axle loads, route and time window — they are not generic.
- Movements are usually restricted to night hours to limit traffic disruption, which compresses your working window.
- Police or authorised escort vehicles are required above defined thresholds, and must be booked to match the permitted window.
- Inter-emirate moves need coordination with each authority along the route, not just the emirate of origin.
- Permit lead times are real. Build days, not hours, into the plan.
If the cargo changes dimension — a different cradle, extra packing, a taller trailer — the permit may need reissuing. Freeze the loaded dimensions before you apply.
What Project Cargo Dubai Actually Costs
Nobody can quote this from a rate card, and you should be cautious of anyone who tries. The cost is built from:
- Ocean freight or charter, driven by how much vessel space the piece occupies rather than its weight alone
- Out-of-gauge surcharges, which scale with the slots blocked around the cargo
- Lifting — shore crane, floating crane or vessel gear, priced by capacity and duration
- Specialised trailers: low bed, extendable, modular hydraulic axles for the heaviest units
- Route survey, permits and escort vehicles
- Lashing, securing and marine surveyor approval of the stowage plan
- Port storage while permits and equipment align
- Marine cargo insurance, priced on declared value and the risk profile of the lift
Two levers move the total more than negotiation does: reducing the loaded envelope, and giving enough lead time that you are choosing equipment rather than accepting whatever is free. Broader market conditions matter too — see our current UAE freight rates update for how regional disruption is affecting vessel availability.
7 Steps to Move Project Cargo Without Surprises
- Fix the dimensions first. Loaded length, width, height, weight and centre of gravity — with the packing and cradle included, not the bare equipment.
- Commission the route survey early. Before booking the vessel, not after it berths. The inland leg dictates the sea leg more often than people expect.
- Choose the discharge port for the route, not the rate. A slightly dearer port with a clear inland run beats a cheap one behind a low bridge.
- Apply for permits with frozen dimensions. Any change after submission risks reissue and lost escort slots.
- Get the stowage and lashing plan approved. A marine surveyor sign-off protects both the cargo and your insurance position.
- Insure on declared value with project cover. Standard cargo policies frequently exclude heavy lift operations. Confirm the wording covers lifting.
- Appoint one accountable coordinator. Vessel, crane, trailer, permit and site crew must move to one schedule. Split ownership is where heavy lift projects lose days.
Project Cargo Dubai — Frequently Asked Questions
What is project cargo?
Cargo that is oversized, overweight, indivisible or critical enough that it cannot move on standard container services. It requires bespoke equipment, engineering input and permits rather than a routine booking.
How far in advance should project cargo Dubai shipments be planned?
Six to twelve weeks is a sensible baseline once dimensions are confirmed, longer if a heavy lift vessel or charter is involved. Route surveys, permits and specialised trailer availability all sit on the critical path.
Do I need a permit to move oversized cargo on UAE roads?
Yes. Oversized and overweight movements need prior authorisation tied to specific dimensions, route and time window, and usually run at night with escort vehicles. Inter-emirate moves require coordination with each authority along the route.
Is project cargo insured differently?
Usually. Many standard marine policies exclude or limit heavy lift operations. Project cargo is typically covered on an all-risk basis at declared value, with the lifting operation specifically included.
Can project cargo move by air?
Sometimes, for urgent components within charter aircraft limits, but cost rises steeply with dimension. For most oversized industrial equipment, sea plus specialised road transport remains the practical route. Our air freight guide covers where the crossover sits.
